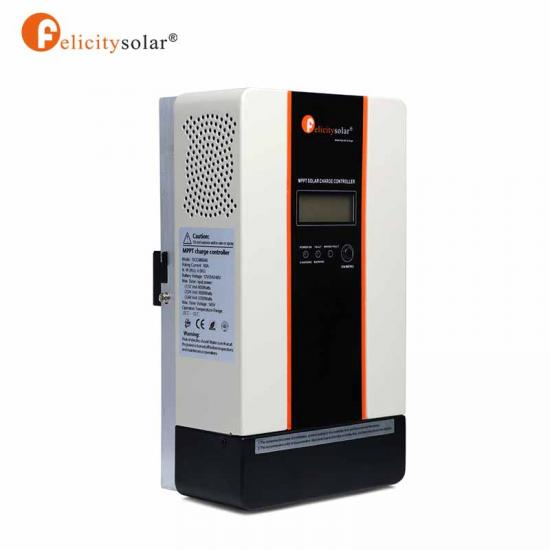

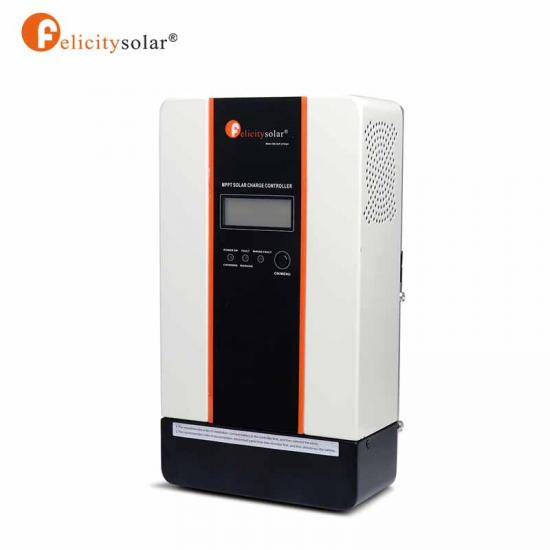

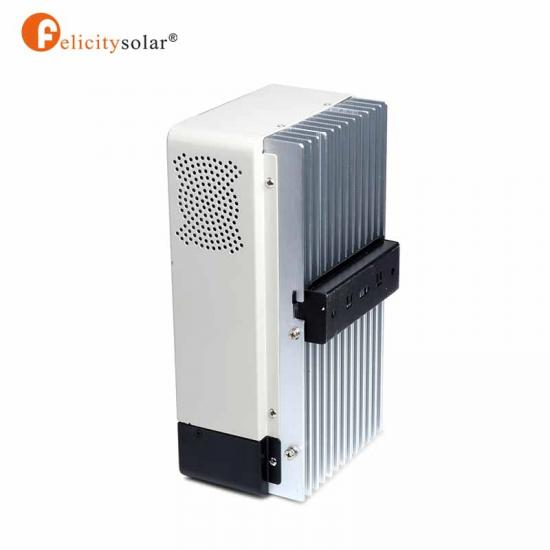

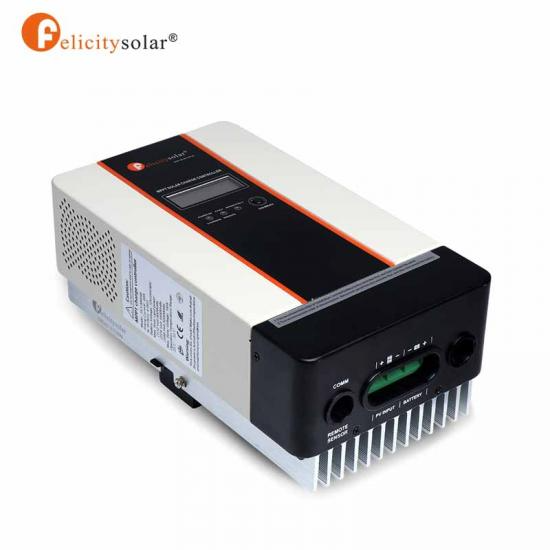

30Amps 12V/24V MPPT charge controller
Advantages
• Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
• Automatic battery voltage detection（12V/24V/48V）
• Three-stage charging optimizes battery perfor\mance
• Maximum charging current up to 45A/60A/80A/100A/120A
• Maximum efficiency up to 98%• Battery temperature sensor (BTS) automatically provides temperature compensation
• Integrated intelligent slot compatible with SNMP/MODBUS communication
• Three-stage charging optimizes battery perfor\mance
• Maximum charging current up to 45A/60A/80A/100A/120A
• Maximum efficiency up to 98%• Battery temperature sensor (BTS) automatically provides temperature compensation
• Integrated intelligent slot compatible with SNMP/MODBUS communication
Product Parameters
|
Model
|
FL-SCCM3024
|
FL-SCCM4524
|
|
Max PV Input Vol
|
95V
|
|
|
System Vol
|
12V/24V/48/(Auto dection)
|
|
|
Max battery Charge Current
|
30A
|
45A
|
|
PV Array MPPT Vol Range
|
15V-80VDC/ 30-80VDC
|
|
|
Max PV Input Power(12V)
|
420W
|
625W
|
|
Max PV Input Power(24V)
|
830W
|
1250W
|
|
Charge information
|
||
|

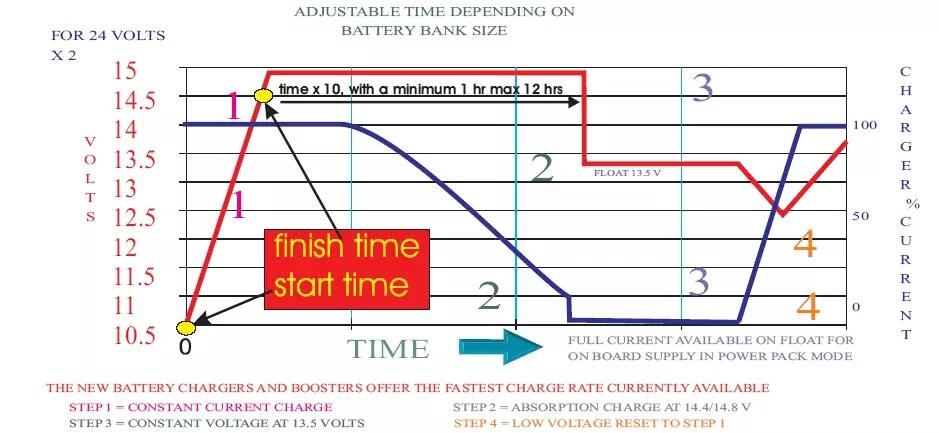

Charging Curve
|
See image below this sheet
|
|
|
Charge Algorithm
|
3-Step
|
|
|
Charging Stages
|
Bulk, Absorpotion, FloatBulk, Absorption,Float
|
|
|
Temperature Compensation Coefficient
|
-5mV/℃/Cell(25℃ref.)
|
|
|
Temperature Compensation Range
|
0℃ to 50℃
|
|
|
Temperature Compensation Set Points
|
Absorption, Float Absorption, Float
|
|
|
Charging Set Points
|
Absorption Stage, Float Stage
|
|
|
Flooded Battery
|
14.6V/29.2V/58.4V
|
|
|
ARG/Gel Battery(Default)
|
14.1V/28.2V/56.4V
|
|
|
Overcharge voltage
|
15V/30V/60V
|
|
|
Overcharge restart voltage
|
14.5V/29V/58V
|
|
|
Battery discharge voltage
|
8.5V/17V/34V
|
|
|
Battery overdischarge voltage
|
9V/18V/36V
|
|
|
Mechanical & Environment
|
||
|
Size(H*W*D)
|
190*151*74mm
|
205*160*78mm
|
|
Weight
|
1.2KG
|
1.8KG
|
|
Ambient Temperature Range
|
0℃ to 50℃
|
|
|
Storage Temperature Range
|
-40℃ to 75℃
|
|
|
Humidity
|
0%-90%RH(No condensing)
|
|
|
Enclosure
|
IP31(indoor&vented)
|
|
