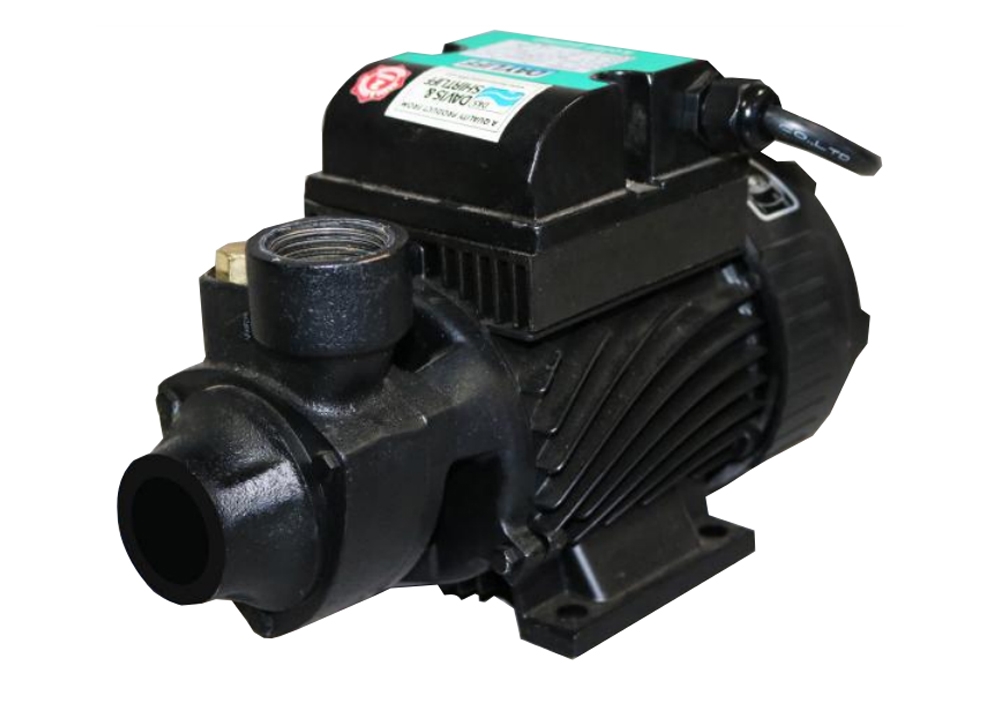

Dayliff DDPS60 is a solar powered booster pump suitable for water transfer in small scale applications where grid power is unavailable. It is constructed of cast iron pump body, aluminium motor body, peripheral brass impeller and silicon carbide mechanical seal.

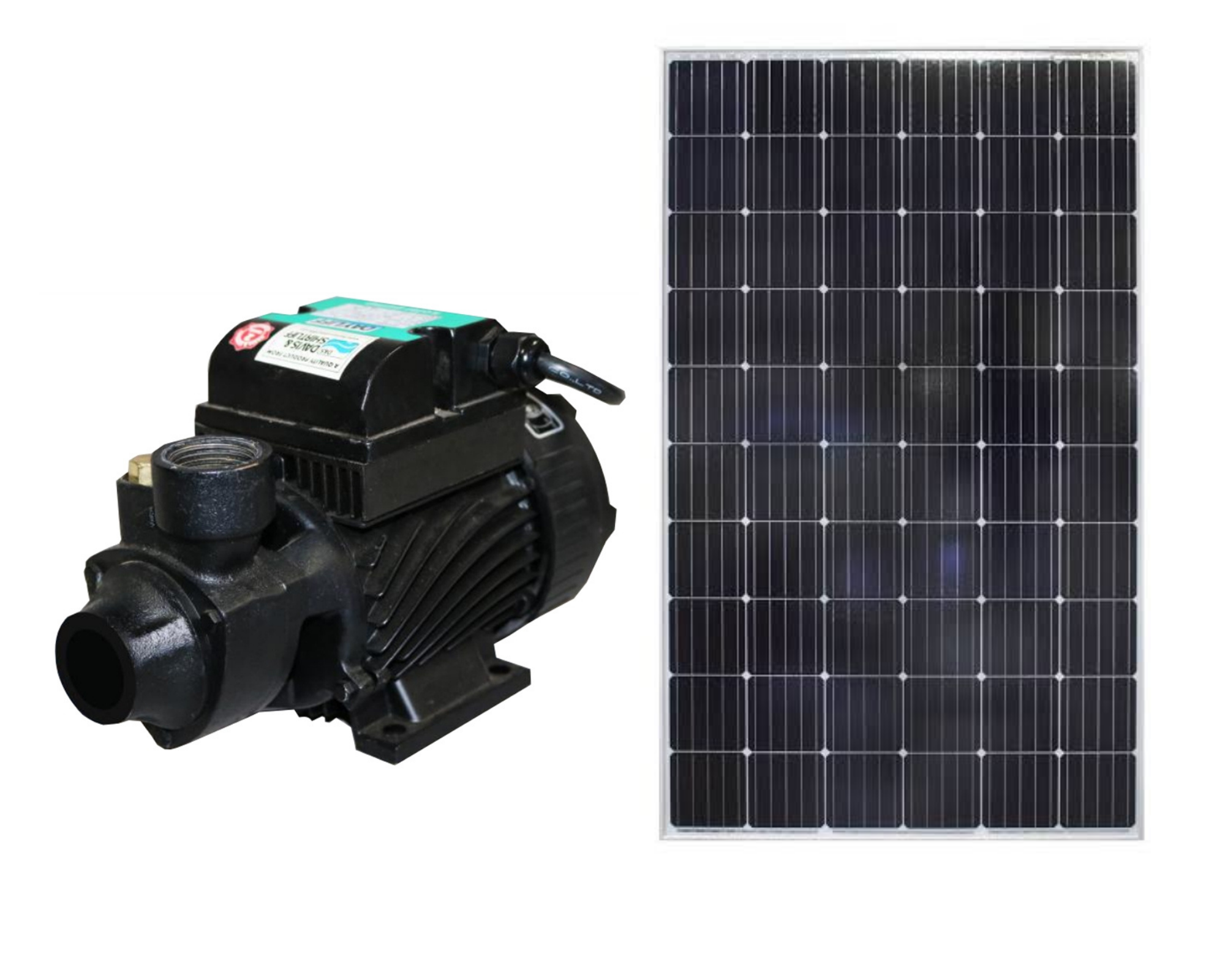

It features an inbuilt controller that provides thermal and over voltage protection and can be connected directly to a 500W, 24V PV power supply.
MOTOR
The pump is coupled to higher efficiency permanent magnet brushless DC motor rated for continuous operation.
| Motor | |
| Voltage | 24V |
| Operating Conditions | |
| Pumped Liquid | Thin clean chemically non-aggressive liquid without solids or fibres. |
| Maximum Fluid Temperature | +40 C |
| Maximum Ambient Temperature | +35 C |
| Maximum Suction Lift | 7m at sea level |
| Pump Information | |
| Model | DDPS60 |
| Power (kW) | 0.37 |
| Inlet / Outlet | 1″ |
| Dimensions (mm) – L | 265 |
| Dimensions (mm) – H | 150 |
| Dimensions (mm) – W | 120 |
| Weight (kg) | 5.5 |
