(Available on backorder)

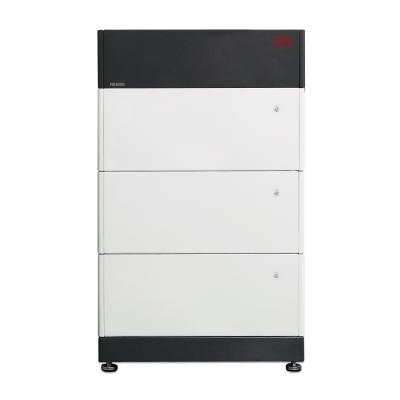

The BYD Battery-Box Premium LVS is a lithium iron phosphate (LFP) battery pack for use with an external inverter.
A single Battery-Box Premium LVS contains between 1 to 6 of these battery modules, stacked in parallel, and can reach 4 to 24.0 kWh usable capacity in one tower (or stack). The battery is rated IP55 (outdoor use).

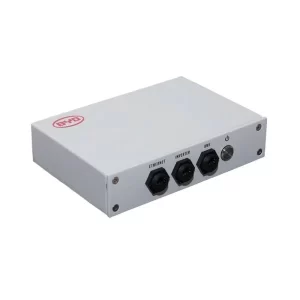

A Base Pack is required per tower as well as a Battery Management Unit per battery bank.
- Rating: 4000 W
- 1 x BYD BATTERY-BOX PREMIUM LVS 4.0 kWh Battery module + BMU
- DoD 100 %
- Lithium-Ion-Phosphate-Technology (LFP)
- The BYD Battery-Box Premium LVS 4.0kW 48V Li Ion Solar Battery Storage is compatible with Victron, Studer, SMA.
Scalable from 4 kWh to 256 kWh.
Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle and Power.
Capable of High-Powered Emergency-Backup and Off-Grid Function.
Patented Internal Plug Design Requires No Additional Wiring.
Self-Consumption Optimization for Residential and Commercial Applications.
Warranty: 10 years
Full datasheet can be viewed here
| Model | LVS 4.0 |
| Usable energy | 4.0kWh |
| Nominal capacity | 78Ah |
| Cont. discharge current | 65A |
| Peak discharge current | 90A |
| Nominal voltage | 51.2V |
| Voltage range (DC) | 40V – 57.6V |
| Enclosure Protection Rating | IP55 |
| Chemistry | Lithium Iron Phosphate (LFP) |
| Operating temperature range | -10 – +50°C |
| Optimal temperature range | 5 – 50°C |
| Dimensions (HxWxD) | 478 x 650 x 298 mm |
| Net weight | 64 kg |
| Nominal Energy | 4.0KWh |
| Manufacturer | BYD |
