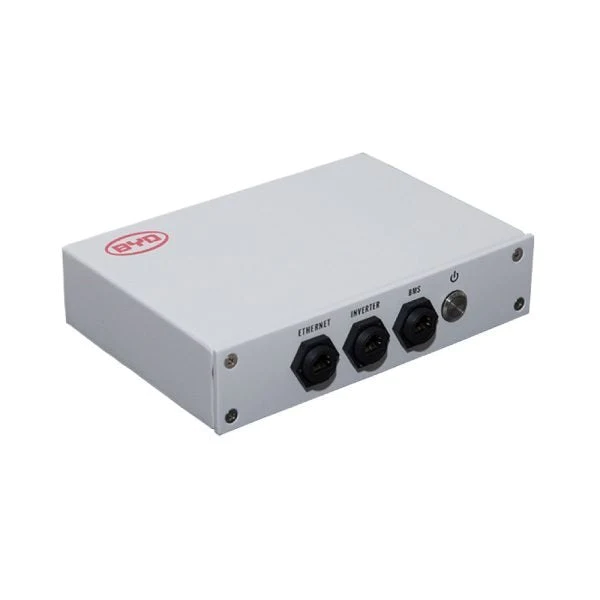

BYD Battery-Box Premium LV BMU – IP55
BYD LV Battery Management Unit (BMU) is applicable for the BYD Battery-Box Premium LV systems (LVS 4.0 – 24.0 and LVL 15.4), and works as a control unit for the systems.
BMU is equipped with a WLAN interface as a standard. The APP – Be Connect – could communicate with BMU through the WLAN.
The connection between BMU and Battery-Box should be the Straight-Through Wired Cable (CAT 5 shield or above, not longer than 10m).
Detailed connection instructions with inverters could be read in the Battery-Box LVS/LVL Quick Start Guide.
Properties:
Protection rating: IP55
Communication: Ethernet / CAN / RS485
Input voltage: 40-60V (Supply by Battery-Box through network cable)
Input current: 200mA
Dimensions (L/W/H): 222x154x59
Weight: 2 kg
